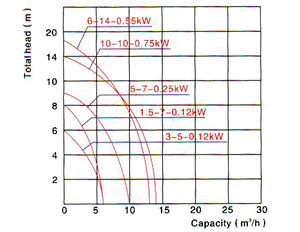

型号
|
扬程
m
|
流量
m3/h
|
电压 频率
V Hz
|
功率
KW/HP
|
配管
内径
mm
|
外形尺寸
mm
|
重量
Kg
|
|---|---|---|---|---|---|---|---|
|
QDN3-5-0.12KW
QN3-5-0.12KW
|
5
Max:6
|
3
Max:6
|
220V/50Hz 220V/60Hz
380V/50Hz 110V/60Hz
|
0.12KW
(1/6HP)
|
25
|
140X140X320
|
5.5
|
|
QDN1.5-7-0.12KW
QN1.5-7-0.12KW
|
7
Max:8
|
1.5
Max:6
|
220V/50Hz 220V/60Hz
380V/50Hz 110V/60Hz
|
0.12KW
(1/6HP)
|
25
|
140X140X320
|
5.5
|
|
QDN5-7-0.25KW
QN5-7-0.25KW
|
7
Max:9
|
5
Max:10
|
220V/50Hz 220V/60Hz
380V/50Hz 110V/60Hz
|
0.25KW
(1/3HP)
|
40
|
160X160X360
|
7.5
|
|
QDN6-14-0.55KW
QN6-14-0.55KW
|
14
Max:18
|
6
Max:13
|
220V/50Hz 220V/60Hz
380V/50Hz 110V/60Hz
|
0.55KW
(3/4HP)
|
40
|
190X190X370
|
9.5
|
|
QDN10-10-0.75KW
QN10-10-0.75KW
|
10
Max:14
|
10
Max:14
|
220V/50Hz 220V/60Hz
380V/50Hz 110V/60Hz
|
0.75KW
(1HP)
|
50
|
190X190X370
|
12
|
|
QDN25-6-0.75KW/F QN25-6-0.75KW |
6 Max:10 |
25 Max:33 |
220V/50Hz;220V/60Hz 380V/50Hz;110V/60Hz |
0.75KW (1HP) |
65 | 19×19×47 | 12.5 |
|
QDN40-6-1.1KW/F QN40-6-1.1KW |
6 Max:10 |
40 Max:50 |
220V/50Hz;220V/60Hz 380V/50Hz;110V/60Hz |
1.1KW (1.5HP) |
65 | 19×19×40 | 14 |
|
QDN25-9-1.1KW/F QN25-9-1.1KW |
9 Max:12 |
25 Max:40 |
220V/50Hz;220V/60Hz 380V/50Hz;110V/60Hz |
1.1KW (1.5HP) |
65 | 19×19×40 | 14 |
|
QDN15-14-1.1KW/F QN15-14-1.1KW |
14 Max:17 |
15 Max:20 |
220V/50Hz;220V/60Hz 380V/50Hz;110V/60Hz |
1.1KW (1.5HP) |
50 | 19×19×40 | 14 |
